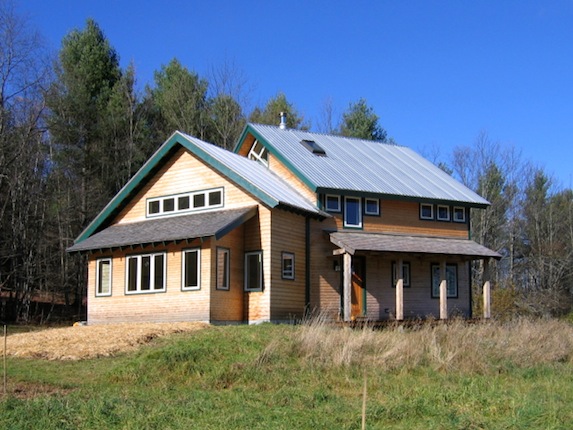

• lims2[1 of 21]
    View toward "back house, little house" kitchen and dining blocks, and the main block with front entry porch. next>

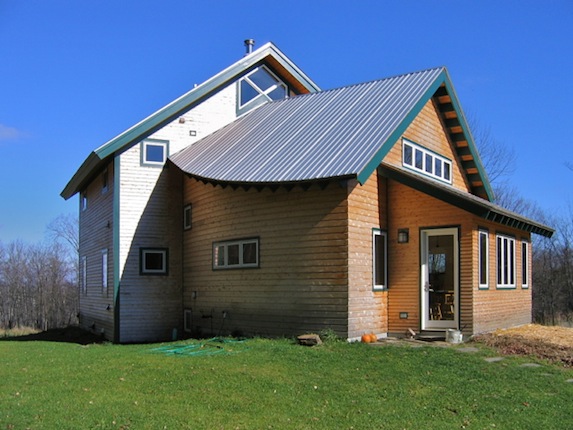

    lims1[2 of 21]
    The thirty degree curve of the north wall gives the house a dramatic turn and relates it to the site.<back next>

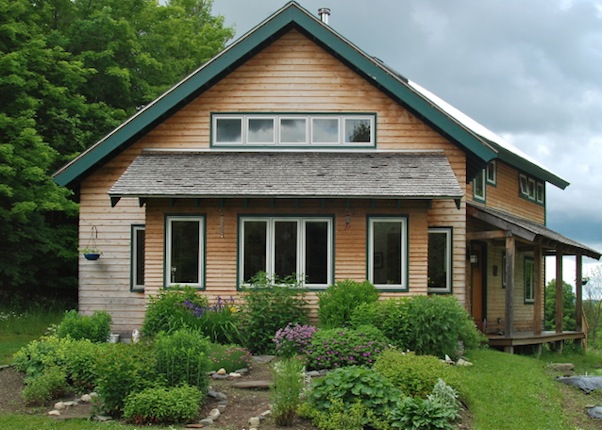

    lims3[3 of 21]
    A few years after the house was completed, with garden landscaping added.<back next>

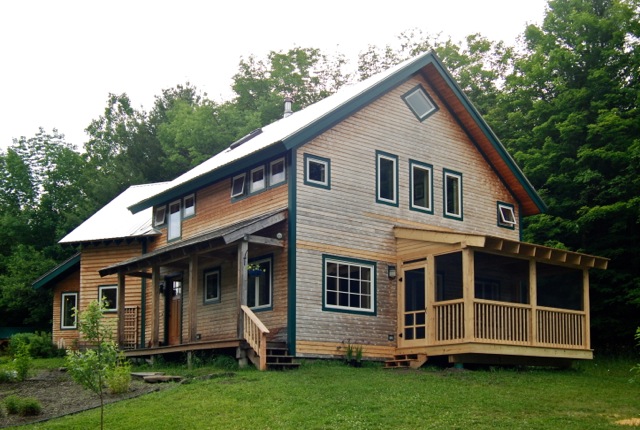

    lims4[4 of 21]
    The east view with screened porch added.<back next>

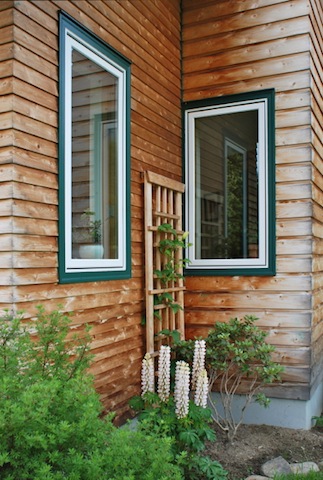

    lims5[5 of 21]
    Mitered corner detail with natural cedar siding.<back next>

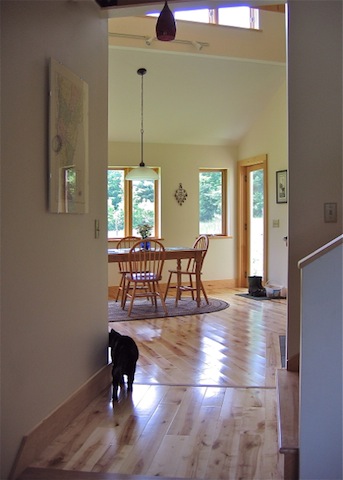

    lims6[6 of 21]
    Interior view looking towards the kitchen and dining area at the intersection between the two angles of the house.<back next>

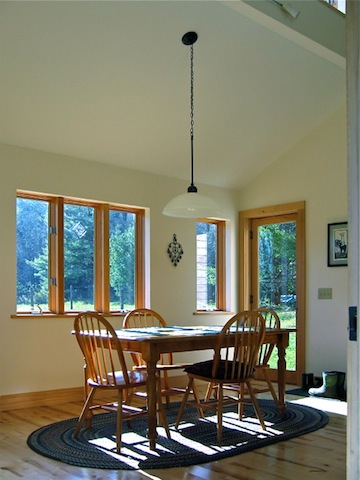

    lims7[7 of 21]
    The sunny dining nook of the "back house".<back next>

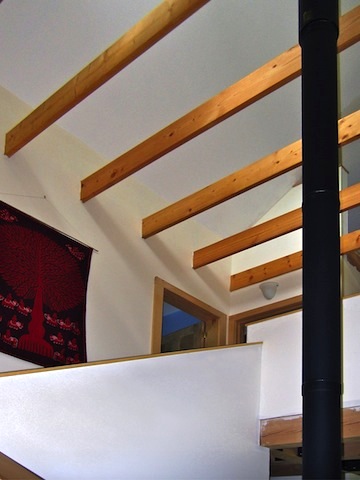

    lims8[8 of 21]
    A view to the high ceiling of the central wood stove corridor with exposed roof ties.<back next>

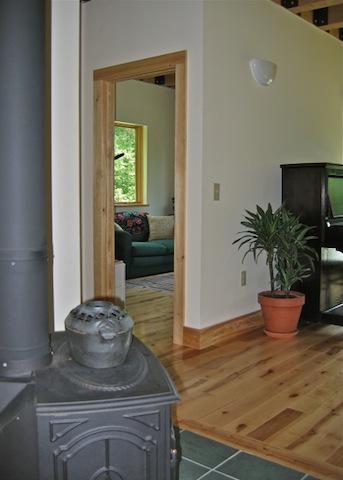

    lims9[9 of 21]
    The wood stove is centrally located on a slate hearth in the living area.<back next>

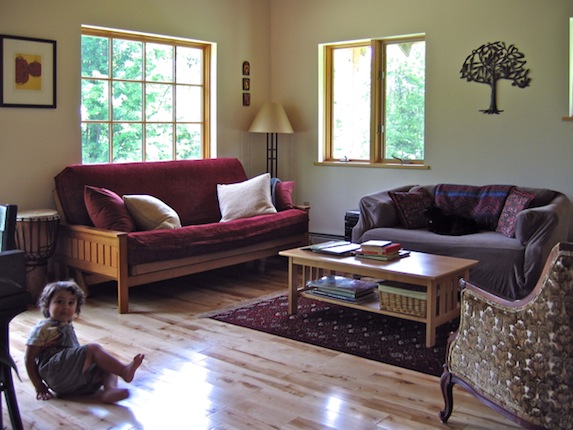

    lims10[10 of 21]
    The sititng room with locally sorced hardwood floors and windows placed for daylight and the view.<back next>

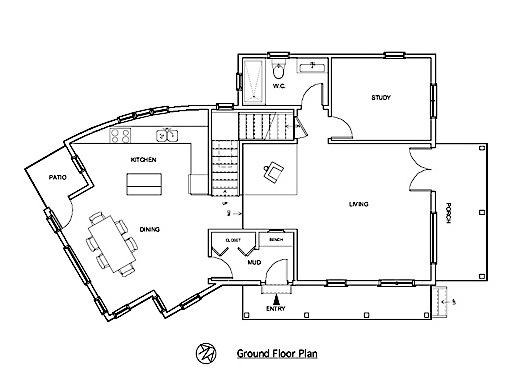

    lims11[11 of 21]
    <back next>
    lims12[12 of 21]
    <back next>
    lims13[13 of 21]
    <back next>

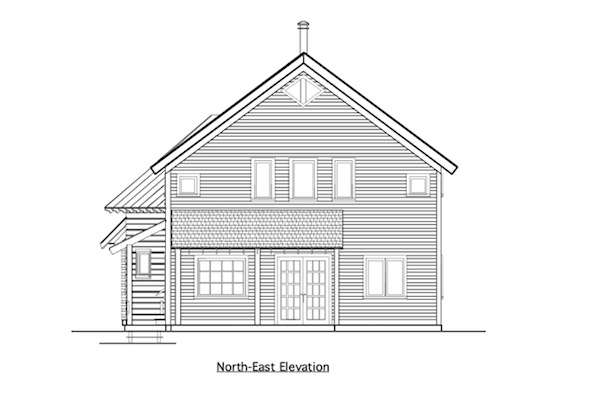

    lims14[14 of 21]
    <back next>

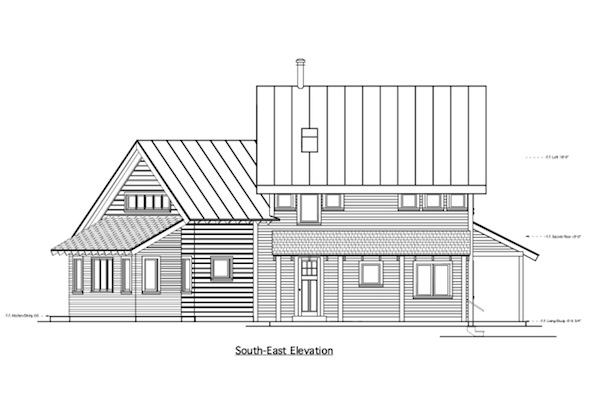

    lims15[15 of 21]
    <back next>

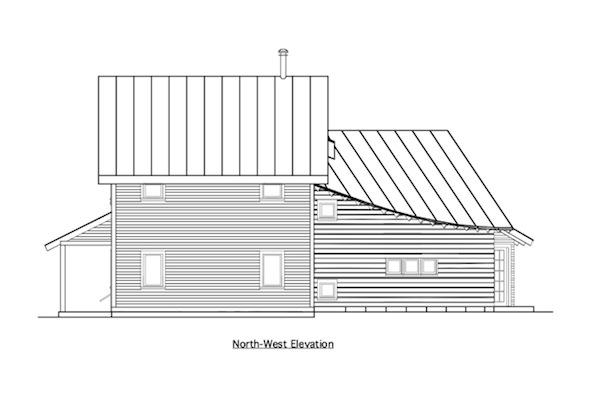

    lims16[16 of 21]
    <back next>

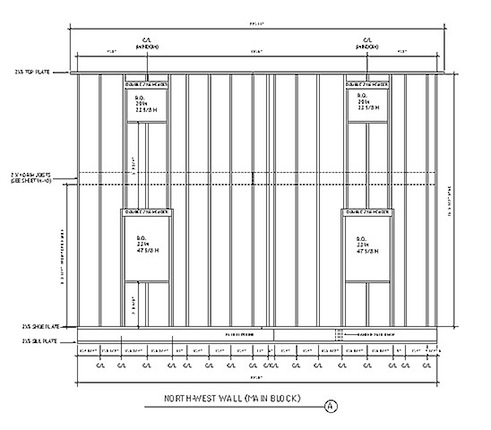

    lims17[17 of 21]
    Balloon frame construction used for strength and economy of materials.<back next>

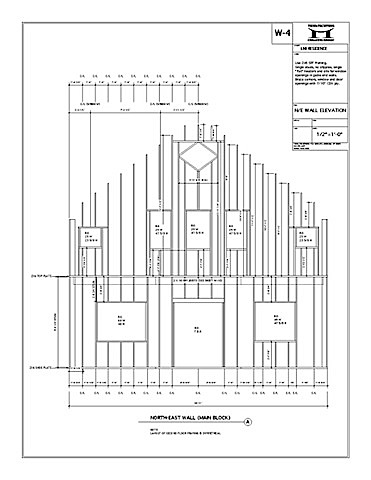

    lims18[18 of 21]
    Gable End Wall Framing<back next>

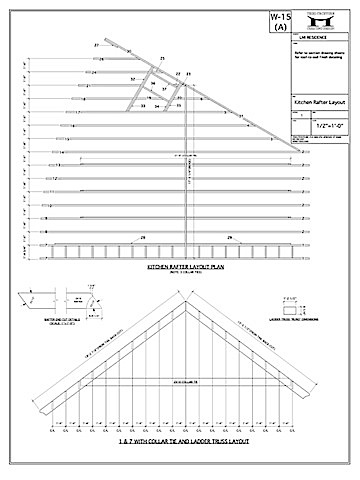

    lims19[19 of 21]
    Rafter Framing for Hip Roof Over Curved Wall<back next>

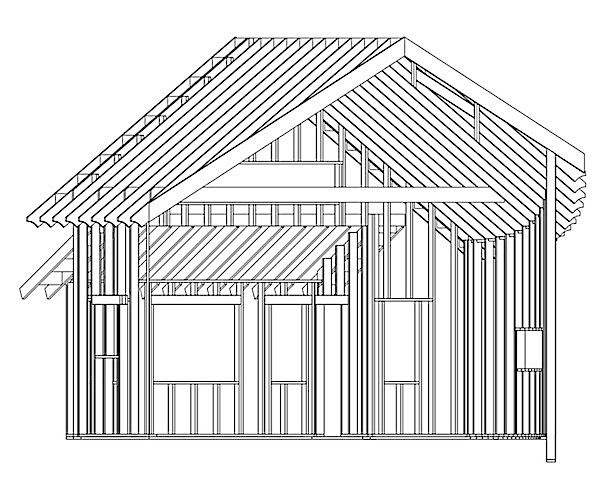

    lims20[20 of 21]
    Kitchen/Dining Block 3d Framing Model<back next>

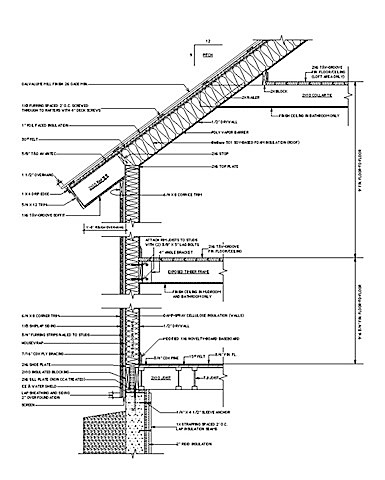

    lims21[21 of 21]
    Wall Section<back

The program for the LIMS Residence called for an energy efficient house on a small footprint.  The design pays respect to the "big house, little house, back house" pattern of traditional New England building, with a twist.  In order to take advantage of views and solar exposure, the kitchen and dining blocks are skewed thirty degrees with a dramatic curved wall.  The house is clad in natural white cedar, and finished inside with locally sourced hard and soft woods, and Vermont slate.  Providing three bedrooms and a home office within an area of 1500 sq ft, the house achieved the highest Energy Star rating and served as a prototype for establishing the LEED for Homes model.

Click through the slides above to view the finished house and select drawings, or scroll through the filmstrip below to follow the context, design and construction.
